FOYER MONACO (SÉRIE #415 ET -)


Step 1: Find your parts
Step 2: Find a dealer

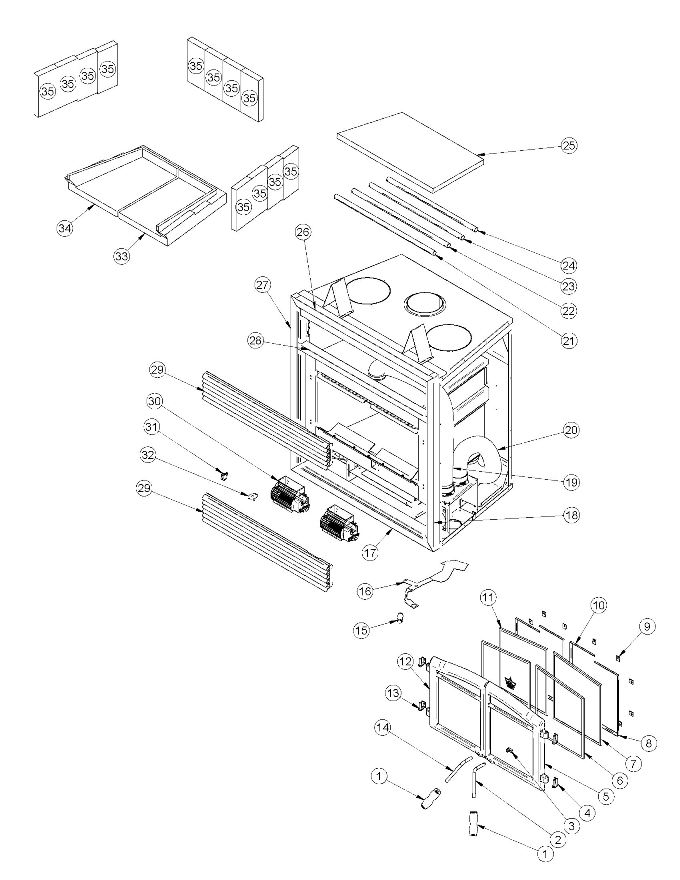

Exploded view drawing and parts list:MONACO FIREPLACE (SERIAL #415 AND -)

Make your selection...

Note that the quantities per item listed below are the standard quantities found in each appliance, not the number of items you need to order.
# Item # Description Availability QTY -
Item per
appliance
MSRP per item
 Selection
1 30560 WOODEN DOOR HANDLE 1/2'' (BROWN) In stock 2 $10.00
2 99998 DISCONTINUED
Out of stock
 1 -
3 99998 DISCONTINUED
Out of stock
 1 -
4 SE53091 RIGHT HINGE ASSEMBLY
Out of stock
 2 $20.00
5 SE24155 RIGHT DOOR WITH HANDLE AND GASKET
Out of stock
 1 $295.00
6 AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC) In stock 1 $25.00
7 SE53074 RIGHT REMPLACEMENT GLASS WITH GASKET 12" X 13 3/16" X 14 1/2" In stock 1 $175.00
7 AC06400 BLACK SELF-ADHESIVE GLASS GASKET (6')
Out of stock
 1 $16.00
8 PL53097 OUTER GLASS RETAINER FRAME
Out of stock
 2 $5.00
9 SE53585 12 GLASS RETAINERS WITH SCREWS In stock 12 $20.00
10 PL53098 INNER GLASS RETAINER FRAME
Out of stock
 2 $5.00
11 SE53075 LEFT REMPLACEMENT GLASS WITH GASKET 12" X 13 3/16" X 14 1/2" In stock 1 $175.00
12 SE24154 LEFT DOOR WITH HANDLE AND GASKET
Out of stock
 1 $295.00
13 SE53092 LEFT HINGE ASSEMBLY
Out of stock
 2 $20.00
14 PL53121 LEFT DOOR HANDLE ROD FOR STRATFORD FIREPLACE
Out of stock
 1 $15.00
15 30561 AIR CONTROL BROWN WOODEN HANDLE In stock 1 $5.00
16 PL53020 AIR DRAFT CONTROL
Out of stock
 1 $75.00
17 PL53016 BOTTOM OF FACEPLATE
Out of stock
 1 $60.00
18 PL53014 RIGHT SIDE OF FACEPLATE
Out of stock
 1 $40.00
19 21075 ALUMINUM LINER 2 PLY 3.149'' X 46'' (COMPRE AT 34 3/4'')
Out of stock
 1 $23.00
20 21076 2 PLY ALUMINUM LINER 3.149'' X 36'' (COMPRESSED AT 27 1/2'')
Out of stock
 1 $80.00
21 PL53030 FRONT SECONDARY AIR TUBE
Out of stock
 1 $50.00
22 VP00213 ZC FIREPLACE RETROFIT KIT In stock 1 $300.00
23 VP00213 ZC FIREPLACE RETROFIT KIT In stock 1 $300.00
24 VP00213 ZC FIREPLACE RETROFIT KIT In stock 1 $300.00
25 21134 VERMICULITE BAFFLE 24 3/16'' X 14 25/32'' X 1 1/4'' In stock 1 $60.00
26 PL53012 FACEPLATE TOP
Out of stock
 1 $55.00
27 PL53013 LEFT SIDE OF FACEPLATE
Out of stock
 1 $40.00
28 PL53046 CENTRAL SECTION OF FACEPLATE
Out of stock
 1 $25.00
29 OA10604 BLACK TRIM KIT In stock 1 $225.00
29 OA10605 GOLD PLATED TRIM KIT
Out of stock
 1 $500.00
29 OA10606 NICKEL TRIM KIT
Out of stock
 1 $750.00
30 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM In stock 2 $180.00
31 44091 ROCKER SWITCH 2 POSITION MSR-8 In stock 1 $10.00
32 44028 CERAMIC THERMODISC F110-20F In stock 1 $25.00
33 22121 EPA FIREPLACE RIGHTFLOOR BRICK In stock 1 $175.00
34 99998 DISCONTINUED
Out of stock
 1 -
35 29020 4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD In stock 12 $10.00
- AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 $29.00
