ENCASTRABLE XTD 1.5-I


Step 1: Find your parts
Step 2: Find a dealer

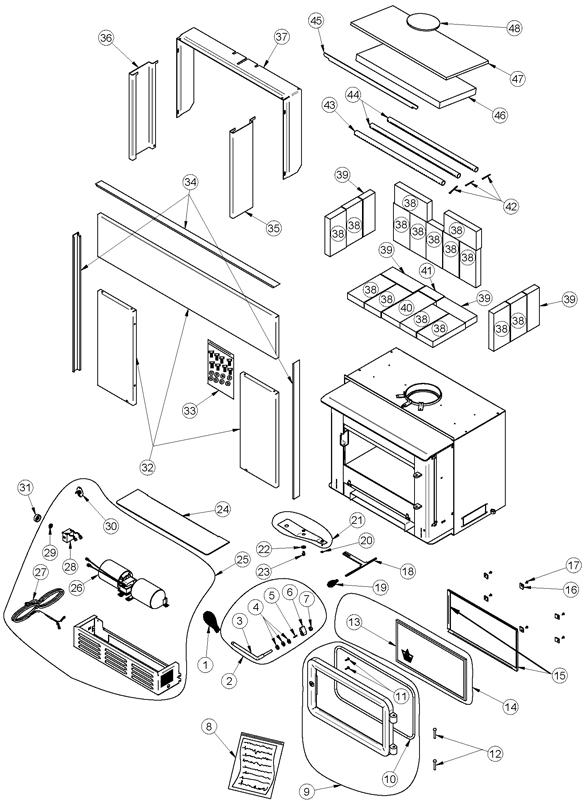

Exploded view drawing and parts list:XTD 1.5-I INSERT

Make your selection...

Note that the quantities per item listed below are the standard quantities found in each appliance, not the number of items you need to order.
# Item # Description Availability QTY -
Item per
appliance
MSRP per item
 Selection
1 AC07860 1/2" BRASS PLATED COIL HANDLE In stock 1 $12.00
2 AC09171 REMPLACEMENT HANDLE AND LATCH KIT
Out of stock
 1 $55.00
3 PL53951 DOOR HANDLE SHAFT
Out of stock
 1 $25.00
4 30205 ZINC WASHER ID 13/32" X OD 13/16" In stock 3 $1.00
5 30533 LATCH KEY PATH PIN In stock 1 $3.00
6 30033 STEEL DOOR LATCH In stock 1 $20.00
7 30224 LOCKNUT 3/8"-16 HEX In stock 1 $2.00
8 99998 DISCONTINUED
Out of stock
 1 -
9 SE24115 CAST IRON DOOR WITH GASKET
Out of stock
 1 $180.00
10 AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC) In stock 1 $25.00
11 30123 SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC In stock 1 $1.00
12 30169 DOOR HINGE PIN 5/16''Ø X 1 3/4" L In stock 2 $2.00
13 AC06400 BLACK SELF-ADHESIVE GLASS GASKET (6')
Out of stock
 1 $16.00
14 SE53930-01 REPLACEMENT GLASS WITH GASKET 8 3/4" X 17" In stock 1 $190.00
15 PL53936 GLASS RETAINER FRAME In stock 2 $15.00
16 SE53585 12 GLASS RETAINERS WITH SCREWS In stock 6 $20.00
17 30124 SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC In stock 6 $1.00
18 PL53616 AIR CONTROL ROD In stock 1 $15.00
19 AC07866 1/4" BLACK COIL HANDLE In stock 1 $10.00
20 30059 5/32" ID PUSHNUT In stock 2 $1.00
21 SE53529 AIR CONTROL DAMPER WITH HARDWARE In stock 1 $45.00
22 30206 ZINC WASHER 5/16"ID X 3/4"OD In stock 1 $1.00
23 30060 THREAD-CUTTING SCREW 1/4-20 X 1/2" F HEX STEEL SLOT WASHER C102 ZINC In stock 1 $1.00
24 PL53908 INSERT ASH SHELF In stock 1 $40.00
25 SE53632 INSERT BLOWER ASSEMBLY 120 CFM 115V In stock 1 $395.00
26 44089 DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A In stock 1 $250.00
27 60013 POWER CORD 96" X 18-3 In stock 1 $20.00
28 44080 RHEOSTAT WITHOUT NUT In stock 1 $55.00
29 44087 RHEOSTAT NUT In stock 1 $5.00
30 44028 CERAMIC THERMODISC F110-20F In stock 1 $25.00
31 44085 RHEOSTAT KNOB In stock 1 $8.00
32 AC03400 REGULAR FACEPLATE (29" X 44") 1.5-1
Out of stock
 1 $200.00
33 SE15097 FACEPLATE HARDWARE KIT In stock 1 $25.00
34 OA10123 BRUSHED NICKEL FACEPLATE TRIM KIT (29" X 44") In stock 1 $130.00
34 OA10122 BLACK REGULAR FACEPLATE TRIM KIT (29" X 44") In stock 1 $130.00
34 OA10121 BRASS REGULAR FACEPLATE TRIM KIT (29" X 44") In stock 1 $100.00
35 PL53942 RIGHTDECORATIVE PANEL
Out of stock
 1 $40.00
36 PL53943 LEFT DECORATIVE PANEL
Out of stock
 1 $40.00
37 PL53869 FACEPLATE EXTENSION In stock 1 $55.00
38 29000 4'' X 8'' X1 1/4'' REFRACTORY BRICK In stock 18 $6.00
39 PL36026 3" X 8" X 1 1/4'' REFRACTORY BRICK In stock 4 $10.00
40 29010 4 1/2" X 9" X 1 1/4" REFRACTORY BRICK In stock 1 $10.00
41 PL36067 4 1/2" X 2'' X 1 1/4'' REFRACTORY BRICK In stock 1 $10.00
42 SE36250 STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" (12 UNITS) In stock 3 $10.00
43 PL53516 FRONT SECONDARY AIR TUBE In stock 1 $60.00
44 PL53517 REAR OR MIDDLE SECONDARY AIR TUBE In stock 2 $60.00
45 PL53533 FRONT BAFFLE SUPPORT In stock 1 $35.00
46 21204 20 1/2" X 9" X 1 1/4" VERMICULITE BAFFLE In stock 1 $50.00
47 21037 23 1/2'' x 10 1/2'' x 1/2'' BAFFLE INSULATION In stock 1 $30.00
48 PL34026 BAFFLE INSULATION WEIGHT In stock 1 $25.00
- AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 $29.00
